- Functional Description
- Specifications
- Applications

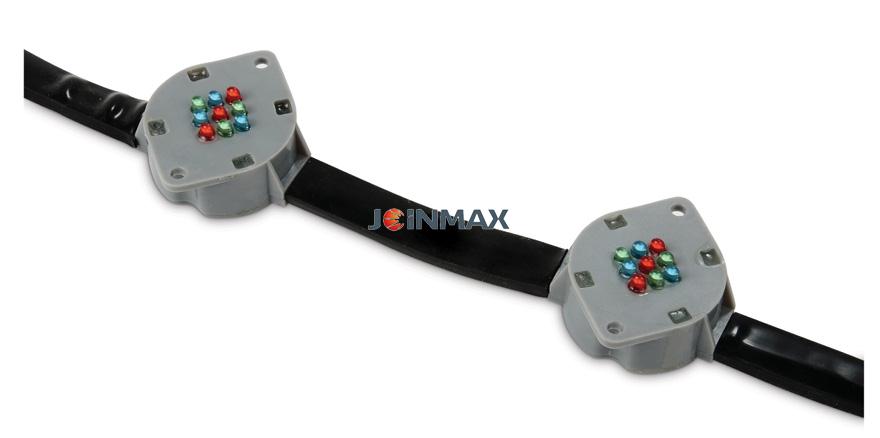

1. JM 26 series is one high brightness color pixel LED string light and could connect with 100 LED pixel lamps at most with soft cable and each pixel is controlled independently with external power and control system, they could form constitutive light belt for outline lighting or large-area video display control system.
2. The string light could be added on the surface of building directly as well as the back of board and shown through pixel hole.
3. The distance between pixel connectors could be adjusted between 100mm to 500mm and the longest of which could be as long as 15 meters.
4. The length from the power to the 1st pixel lamp is 2 meters.
5. Employ the double-string drive with reliable signal, act in accordance with Joinmax`s pixel casting video control system to form light picture at random shape and fully demonstrate the light effect.
技術分類 Technical?Classification | 項目規(gui)格 Item | 參數 Parameter |
電氣性能(neng) Electrical?Properties | 供電(dian)電(dian)壓(ya) Input?voltage | DC12V |
最大功耗 Max?power??consumption | 每(mei)個(ge)節點最(zui)大1W? per?pixel?1W | |
光學性能 Optical?Properties | 光源(yuan)組成 LED?composition | 每個節(jie)點3R+3G+3B直(zhi)插346?LED?? 3R+3G+3B??346?DIP?LED???? |
像素間距 Pixel?pitch | 120mm(根據客(ke)戶需要(yao)設(she)計) | |
光色(se) LED?color | 紅色/綠色/藍色?全彩色 red/green/blue/full?color | |
光束角 Beam?angle | 60°X110° | |
面光強度 Brightness | 9cd/pcs | |
亮度等級 Brightness?grade | 每種(zhong)顏色256?級? 256?grade?per?color | |
光通維持率 Luminous?maintenance?rate | 50000?hour（@70%） | |
控(kong)制(zhi)方式 Control?Mode | 控制接口 Interface | 2芯串行接口 2-pin?serial?Interface |
控制系統 Control?System | 中鳴科技 Easyplay5.0（joinmax） | |
結構性能 Structure | 尺寸(cun)(長x寬x高)?Dimension?(LxWxH) | 54X45X20（mm） |
重量 Weight | 20g/pixel | |
燈體材料 Material | PC塑料 | |
表面顏色 Surface?color | 灰色? Grey | |
燈具連接 Connection | 4芯電源信號扁平電纜? ?4-pin?power+signal?cable | |
防護(hu)等級 IP?grade | IP66 | |
工作溫度 Work?temperature | -20℃～50℃ | |
工作濕度 Work?humidity | 0～90% | |
最大級聯數 Max?cascade?connection?qty | 每串最大級聯100個節點?? 100?pixels?per?cluster | |
使用環境 Work?Environment | 干(gan)燥/潮濕 dry/wet | |
安全性能Safety | 認證 Certificate | CE |
節點距離? Pixel?Pitch | 外殼顏色? Surface?Color | 產品編號 Model |
120mm | 白色?White | JM26-100901RGB |
灰色?Grey | JM26-100902RGB | |
200mm | 白色White | JM26-100903RGB |
灰(hui)色Grey | JM26-100904RGB |
?
-
