  • Functional Description
  • Specifications
  • Applications

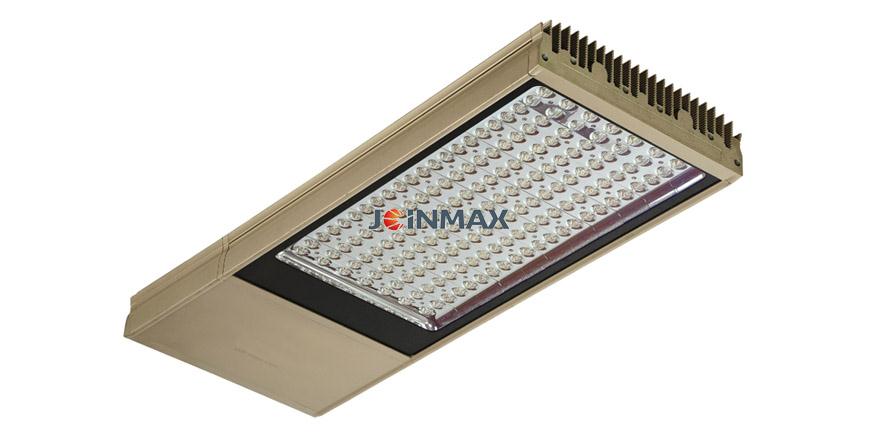

1. JM18 series LED lamp employs large-power ultra-high brightness LED as light source with the characteristics of high photosynthetic efficiency, long working-life.

2. Equipped with patented twice optics lens and the batwing-shape horizontal grading, high light transmittance, high transmittance rate and good endurance.

3. Employ advanced structure design and heat analysis stem design, high-density pressed aluminum shape with large heat-radiation area and good conductivity.

4. Employ general Ф60mm standard overarm installation with adjustable installation elevation in a range of 0-30 degree.

5. Employ high-power outdoor LED drive power and highly-effective transitional board with low internal friction ,low self-generated heat, high electricity efficacy.

?

技術分類Technical?Classification

項目(mu)規格Item

JM18-314001RM

JM18-308401RM

JM18-305601RM

電氣性能Electrical?Properties

燈(deng)具功耗Power?consumption

180W

110W

75W

供電電壓Input?voltage

AC100-240V,50-60Hz

功(gong)率因數Power?factor

PF>0.95

光學(xue)性能Optical?Properties

光通量Luminous?flux

大于Over?16200lm?

大于(yu)Over?9900lm

大于Over?6750lm

光(guang)源色溫Color?temperature

5700K

顯色(se)指數Color?rendering?index

CRI>70

光效(xiao)Light?Efficacy

大于90?lm/W?Over?90?lm/W

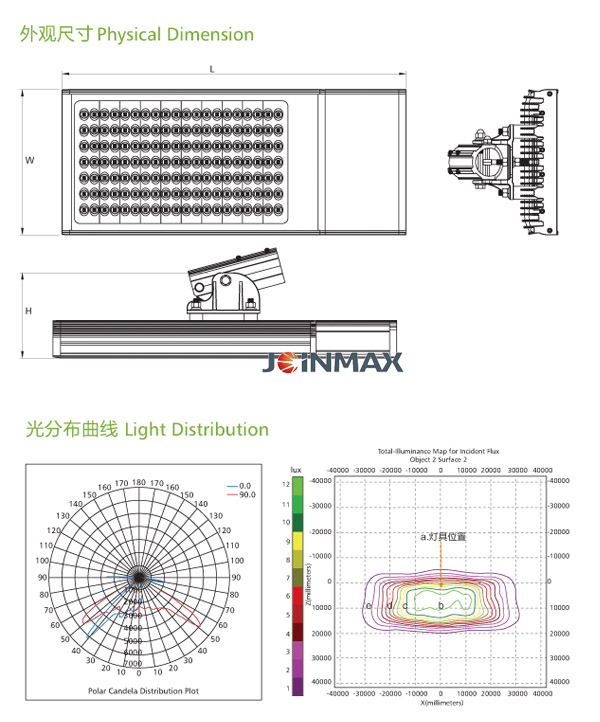

配光曲線?Light?Distribution

120°X?60°?矩型(xing)光(guang)斑??120°X?60°?rectangle?light?spot

平均(jun)照度(du)?Average?Illumination

高度10米?10?Meters?High:>28?lux

高度8米:>26?lux

高(gao)度6米:>25?lux

高度(du)12米:>20?lux

高(gao)度10米:>16?lux

高度8米:>15?lux

照射范圍?Lighting?Scope

高(gao)度10米:34X12?m2

高(gao)度8米:?27X9.5?m2

高度6米:21X7.0?m2

高度12米:41X14?m2

高度10米:34X12?m2

高度8米:27X9.5?m2

結構性能Structure

長x寬x高?Dimension(L*W*H)

690X320X188?mm

510X320X188?mm

430X320X188?mm

燈體重(zhong)量?Weight

17Kg

13Kg

10Kg

安裝方式?Installation?Method

ф60mm標準橫(heng)臂,仰角(jiao)可調?Standard?crossarm,?adjustable?elevation?angle

燈體材料Material

擠壓鋁+鋼化玻(bo)璃(li)Die-casting?aluminium?and?hardened?glass

表面顏色(se)Surface?Color

金黃(huang)色?Gold

工作溫度Work?Temperature

-30℃~50

工作濕度Work?Humidity

095%

使用(yong)壽命Life?span

50000?hour(@70%)

使用環境Work?Environment

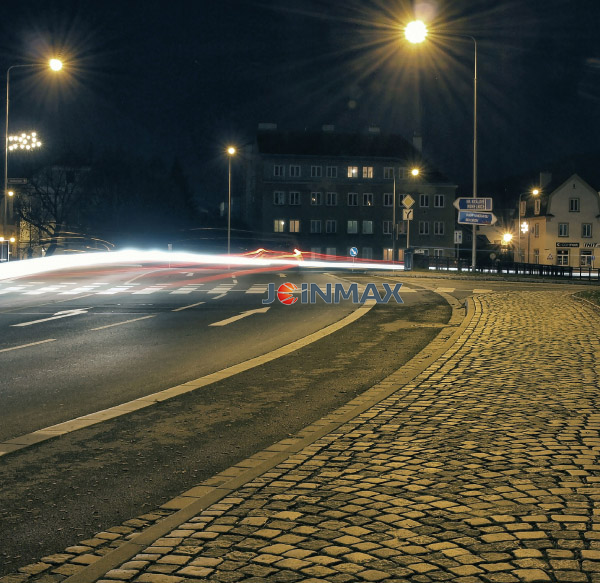

室外道路照明Outdoor

防護等級Protective?Grade

IP65
