- Functional Description
- Specifications
- Applications

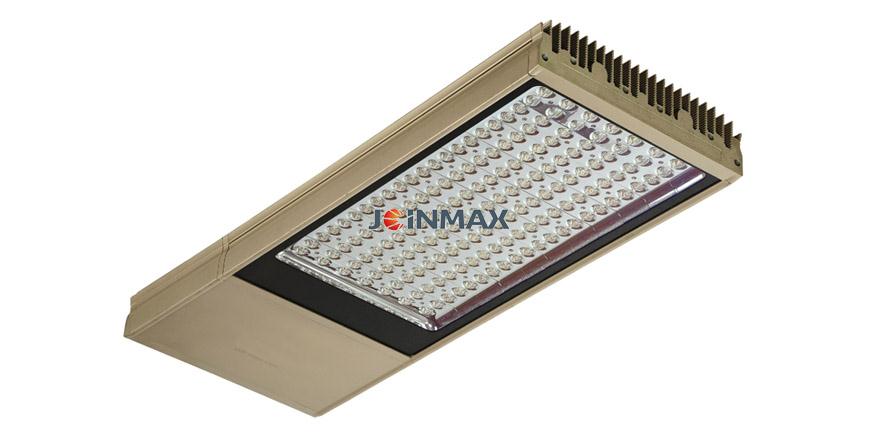

1. JM15 series LED lamp employs large-power ultra-high brightness LED as light source with the characteristics of high photosynthetic efficiency, long working-life.
2. Equipped with patented twice optics lens and the batwing-shape horizontal grading, high light transmittance, high transmittance rate and good endurance.
3. Employ advanced structure design and heat analysis stem design, high-density pressed aluminum shape with large heat-radiation area and good conductivity.
4. Employ general Ф60mm standard overarm installation with adjustable installation elevation in a range of 0-30 degree.
5. Employ high-power outdoor LED drive power and highly-effective transitional board with built-in macro-processor and adjustable road lamp light.
6. To comply with LED road lamp management system and long-distance smart management available
?技術分類Technical?Classification | 項目規格Item | JM15-314001RM | JM15-308401RM | JM15-305601RM |
電氣性能Electrical?Properties | 燈(deng)具功(gong)耗Power?consumption | 180W | 110W | 75W |
供電電壓(ya)Input?voltage | AC100-240V，50-60Hz | |||
功率(lv)因數Power?factor | PF>0.95 | |||
光學性能Optical?Properties | 光通(tong)量Luminous?flux | 大于(yu)16200lm | 大于(yu)9900lm | 大于(yu)6750lm |
光(guang)源色溫Color?temperature | 5700K | |||
顯色指(zhi)數(shu)Color?rendering?index | CRI>70 | |||
光效(xiao)Light?Efficacy | 大于90?lm/W?Over?90?lm/W | |||

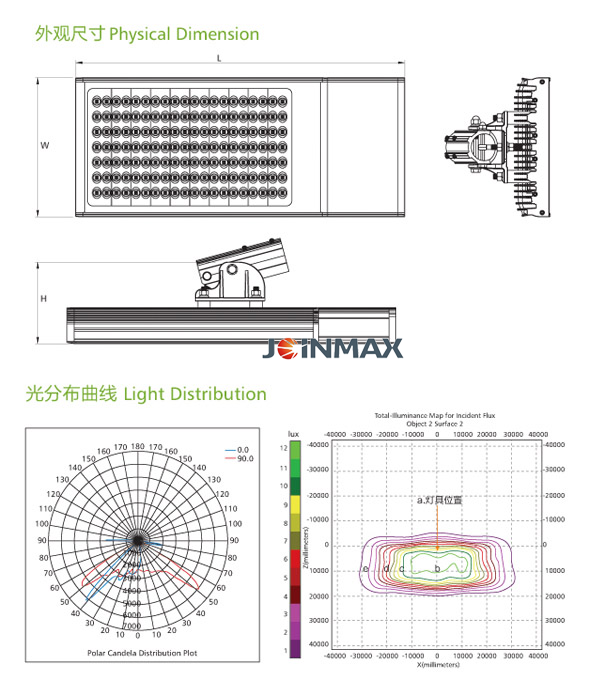

配光曲線?Light?Distribution | 120°X?60°?矩型光斑??120°X?60°?rectangle?light?spot | |||
平均(jun)照(zhao)度?Average?Illumination | 高度(du)10米?10?Meters?High：>28?lux | 高度8米：>26?lux | 高度6米：>25?lux | |
高度12米：>20?lux | 高度10米(mi)：>16?lux | 高度8米(mi)：>15?lux | ||
照射(she)范圍?Lighting?Scope | 高度10米：34X12?m2 | 高度8米：?27X9.5?m2 | 高度6米(mi)：21X7.0?m2 | |
高度12米：41X14?m2 | 高(gao)度10米(mi)：34X12?m2 | 高(gao)度8米：27X9.5?m2 | ||
控制性能Control | 控制方式(shi)?Control?Mode | 自(zi)帶調光(guang)策略(lve)控制Dimming?strategy?control? | ||
亮度等級?Brightness?Level | 100級?100?levels | |||
結構性能Structure | 長x寬(kuan)x高?Dimension(L*W*H) | 690X320X188?mm | 510X320X188?mm | 430X320X188?mm |
燈體重量?Weight | 17Kg | 13Kg | 10Kg | |
安(an)裝方式?Installation?Method | ф60mm標(biao)準(zhun)橫臂，仰角可調?Standard?crossarm,?adjustable?elevation?angle | |||
燈體材料Material | 擠壓(ya)鋁+鋼化玻璃Die-casting?aluminium?and?hardened?glass | |||
表面顏色Surface?Color | 金黃色?Gold | |||
工作溫度Work?Temperature | -30℃～50℃ | |||
工作濕度Work?Humidity | 0～95% | |||
使用壽命Life?span | 50000?hour（@70%） | |||
使用環境Work?Environment | 室外道(dao)路照(zhao)明Outdoor | |||
防護等級Protective?Grade | IP65 | |||
-
