技(ji)術分類Technical?Classification

項(xiang)目規(gui)格Item

參數Parameter

電(dian)氣(qi)性能Electrical?Properties

供(gong)電電壓Input?voltage

DC24V

最大(da)功耗(hao)Max.power?consumption

3.6W

光學(xue)性(xing)能(neng)Optical?Properties

光(guang)源組成LED?composition

3顆LED?

3?pcs?of???LED?lamps

光色LED?Color

紅色/綠色/藍色/黃色/白色/RGB?Red/Green/Blue/Yellow/White/RGB

光通量

luminous?flux

150?lm

光束(shu)角?Beam?Angle

30°/45°/60°

亮度(du)等級Brightness?Grade

每種顏色256?級?256?grade?per?color

光通維持率luminous?maintenance?rate

35000?hour@70%

控制方式Control?Mode

控制(zhi)接口Interface

DMX512

控制系統(tong)Control?System

中鳴科技Easyplay5.0?(Joinmax)

結構性(xing)能Structure

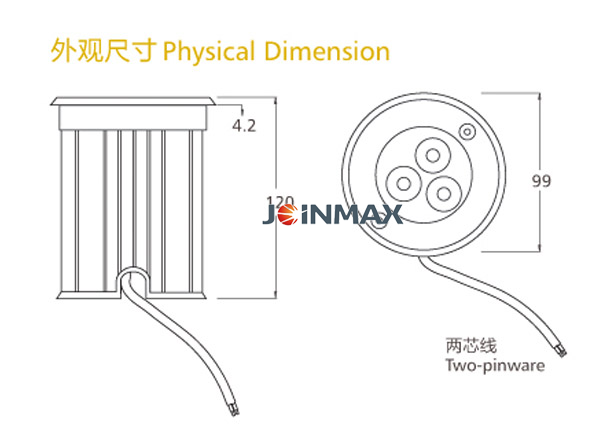

尺寸(長x寬x高)?Dimension?(L*W*H)

?99XH120（mm）

重量(liang)Weight

850g

燈體材料Material

透明抗UV的鋼化玻璃面蓋，不銹鋼絲防護面罩，壓鑄鋁燈體，陽極氧化表面處理。

Transparent?anti-UV?tempered?glass,stainless?steel?protective?shade?and?die-casting?aluminum?body?

表面顏色Surface?Color

銀(yin)色?Silver

燈具連接Connection

公母接頭?Male?and?female?connectors

防護等級Protection?Rating

IP68

工作(zuo)溫度Work?Temperature

-20℃～40℃

使用環境Work?Environment

-20℃～40℃

技術分類Technical?Classification

項目(mu)規格Item

參數Parameter

電氣性能Electrical?Properties

供電電(dian)壓Input?voltage

DC24V

最大功耗(hao)Max.power?consumption

3.6W

光學性能Optical?Properties

光源組成LED?composition

3顆LED?

3?pcs?of???LED?lamps

光色LED?Color

紅色/綠色/藍色/黃色/白色/RGB?Red/Green/Blue/Yellow/White/RGB

光通(tong)量

luminous?flux

150?lm

光(guang)束角?Beam?Angle

30°/45°/60°

亮度(du)等級Brightness?Grade

每種顏色256?級?256?grade?per?color

光通維持率luminous?maintenance?rate

35000?hour@70%

控(kong)制(zhi)方式(shi)Control?Mode

控(kong)制接口Interface

DMX512

控制系統Control?System

中鳴科技Easyplay5.0?(Joinmax)

結構性(xing)能Structure

尺寸(長x寬x高)?Dimension?(L*W*H)

?99XH120（mm）

重量(liang)Weight

850g

燈體材料Material

透明抗UV的鋼化玻璃面蓋，不銹鋼絲防護面罩，壓鑄鋁燈體，陽極氧化表面處理。

Transparent?anti-UV?tempered?glass,stainless?steel?protective?shade?and?die-casting?aluminum?body?

表(biao)面(mian)顏色Surface?Color

銀色?Silver

燈具連接Connection

公母接頭?Male?and?female?connectors

防護等級Protection?Rating

IP68

工作溫度(du)Work?Temperature

-20℃～40℃

使用環境Work?Environment

-20℃～40℃
